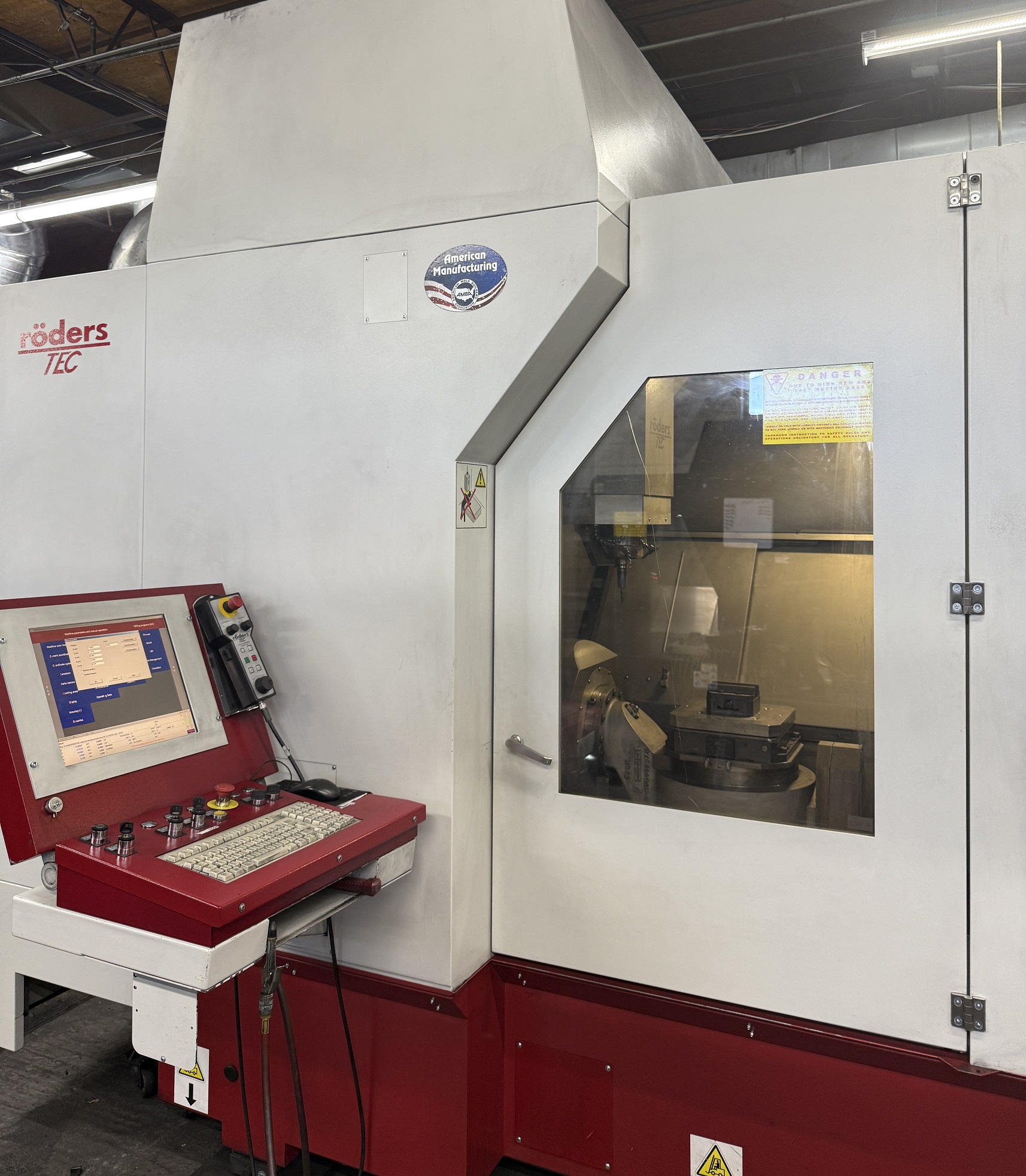

Roeders RXP600DSH 5-Axis High Speed Vertical Machining Center (2013)
Stock Number: 2563
Roeders RXP600DSH
Age: 2013
Condition: As Is, Where Is
In the Roeders line of machines, accuracy, extreme dynamics and high machining speeds are combined with other important aspects such as outstanding chip removal, high flexibility, good ergonomics and the addition of automation.
Features:
* Patented sealing of all machine elements, therefore also ideally suitable for machining of graphite and other dust-creating abrasive materials without retooling, additional extraction equipment and other forms of restrictions.
* Temperature stabilization of the complete machine frame for highly accurate production, water-cooling of bearings and spindle nuts as well as the milling spindle by means of an extra cooling sleeve.
* Accessibility of the work area is particularly easy from 2 sides and visibility is excellent
* Part loading with crane possible, front door opens roof
* Tool changer - dust protected and with integrated laser measuring equipment
* Laser measuring equipment for length and diameter measuring as well as checking and profile determination of the milling tool in use.
* Digital drives with Sercos interface
* 2 encoder systems, with high resolution in each axis for greatest accuracy and dynamic response.
* Control technology, matched to the mechanical system of the machine, for movement completely free of contour variations
* Operational accuracy, depending on use, with the accuracy being restricted by the machining process and not the machine itself.
A Youtube video of this machine operating can be seen at:
https://youtu.be/6Y5D_y8TIZw
Equipped With:

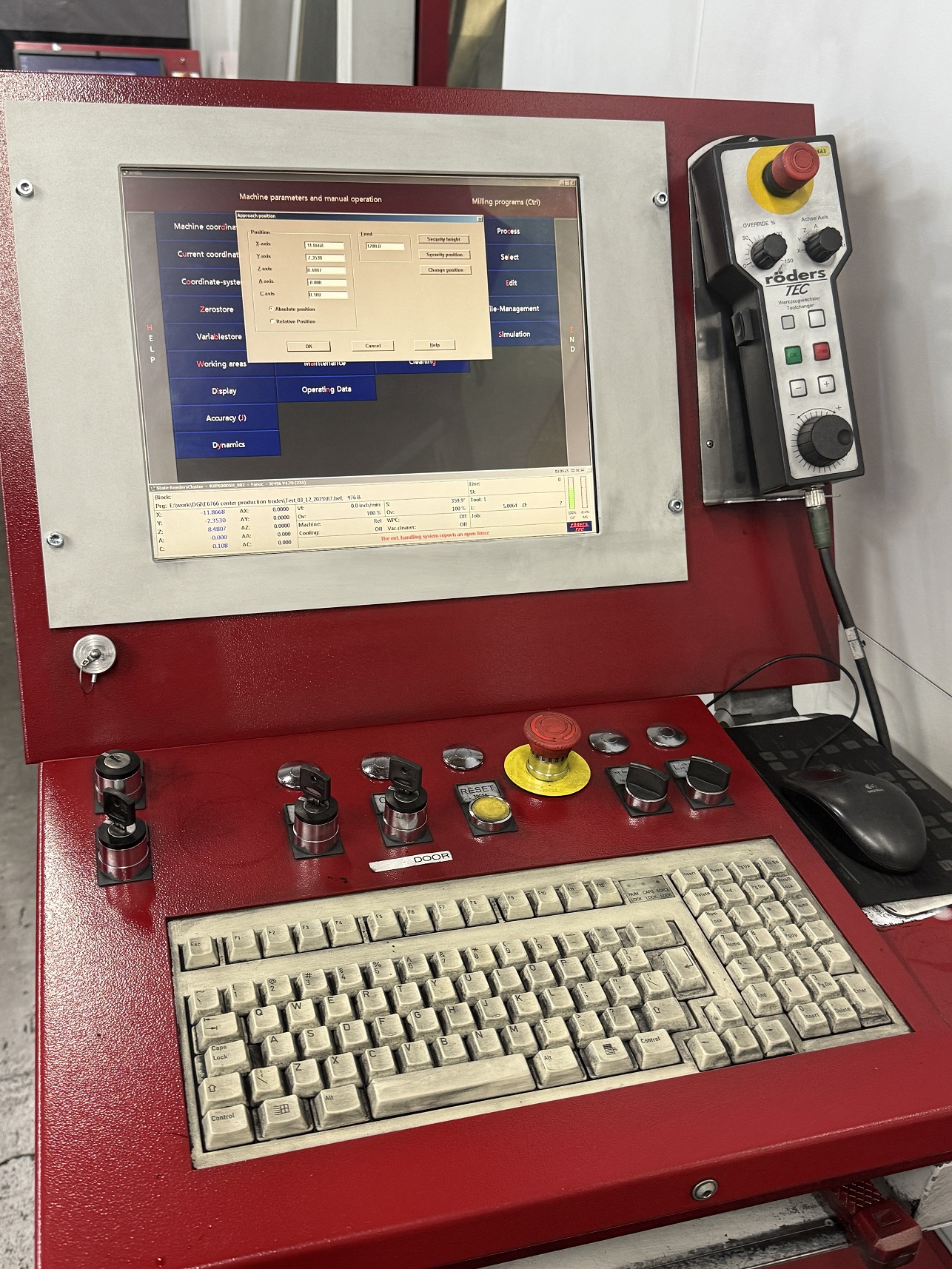

* Roeders RMS6 Control
* Linear Motors (X,Y & Z)
* Direct Drive Torque Motor Rotary Drives (A & C)
* Fischer 40,000 RPM Vector Controlled Spindle MFW-1412/40
* HSK-E50 Taper
* 24 Position Automatic Toolchanger
* Erowa UPC-P C-Axis Table Chuck
* Blum Laser Tool Setter
* Automatic Machine Calibration
* Prepped for Dust Extraction
* Automatic Tool Cleaning Station
- Compressed Air-Blast Cleaning of Cutting Tool Before Laser Measurement
* Oil Mist Spray Cooling System
- Lubricates Tool With Fine Oil/Air Mist
* Software for Re-Cutting Partial Programs
- Fully Integrated Into the NC Milling Simulation Program
* Ethernet Network Card
- 1GBit/sec, Fiber-Optic Type of Communication for Minimal Interference, RJ45
* NC Milling Simulation Program RMSEdit/Sim
- Easy to Use Windows Interface, Runs Directly on Control
* 3D Touch Probe for Automatic Workpiece Setup
* High Accuracy Package
- Measurement of Spindle Growth With Non-Contact Sensor
* UPS - 3-Axis
* Lift Up Z-Axis
* Electric Chiller
* Available Manuals and Accessories
** Table Tooling & Toolholders pictured are NOT Included with the machine purchase
