Fadal VMC-4020APC Vertical Machining Center (2019)

Stock Number: 2561

Fadal VMC-4020APC

Age: 2019

Condition: As Is, Where Is

Cast iron Meehanite base with X, Y & Z-axis Boxed Ways. Full Enclosure with removable side panels and wide front doors for good access to table. Spindle is a two speed range, 10,000 rpm system for medium high speed milling. The toolchanger is a dual swing-arm style.

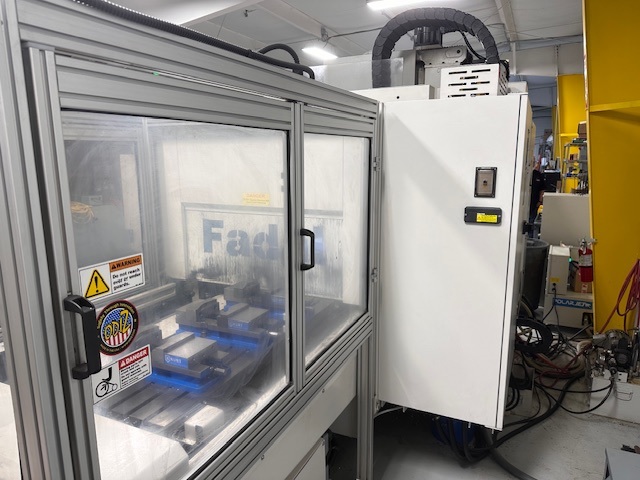

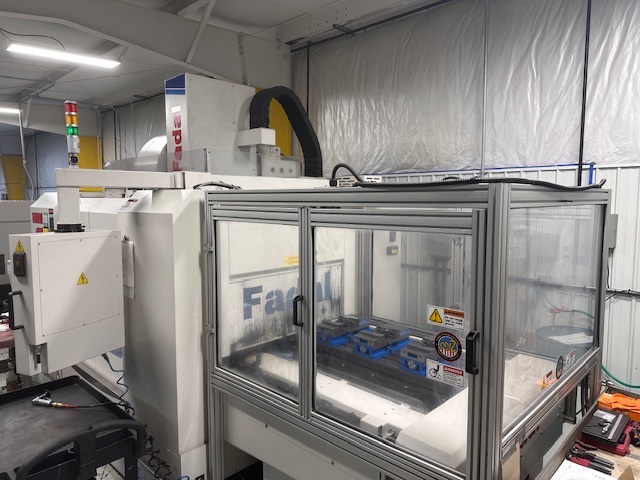

Click to view larger photo

Request A Quote On Our Stock Number: 2561 Fadal VMC-4020APC Vertical Machining Center (2019)

Request a quote on stock# 2561

Specification	Description
X-Axis Table Travel	40"
Y-Axis Saddle Travel	20"
Z-Axis Spindle Head Travel	20"
Table Size	39.4" x 17.7"
T-Slots (No. x Width x Span)	3 x .709" x 4.33"
Cutting Feed Rate (X,Y,Z)	.01"-590 ipm
Rapid Travel Rate (X,Y,Z)	1,000 ipm (X,YZ)
Max Weight on Table	1,320 lbs
Maximum Distance Spindle To Table	5"-25"
Spindle Taper	CAT-40
Spindle Motor	22.5 Hp
Spindle Speeds	10 - 10,000 RPM
Automatic Tool Changer	24 Position
Maximum Tool Diameter	4.9"
Maximum Tool Length	13.5"
Maximum Tool Weight	15 lbs
Power Requirement	208-230V/3Phz/60Hz 25kVA
Air Requirement	90 PSI, 20 SCFM
Machine Footprint w/Chip Conveyor	161" x 96" x 104"H
Machine Size	123" x 96" x 104"H
Machine Weight	12,581 lbs

Equipped With:
* Fadal 64MP CNC Control * Box Way Construction X,Y & Z * 24 Position Dual Arm Type Toolchanger * 10,000 RPM High Torque Spindle * Fadal 2 Pallet Automatic Pallet Changer * Coolant Thru Spindle * Renishaw Probing * Rigid Tapping * Spindle Orientation * Chip Conveyor * Spindle Chiller * All Available Manuals ** Toolholders and table vises shown are NOT included with the machine.
