Mitsubishi MV2400S Wire EDM (2018)

Stock Number: 0906

Mitsubishi MV2400S

Age: 2018

Condition: As Is, Where Is

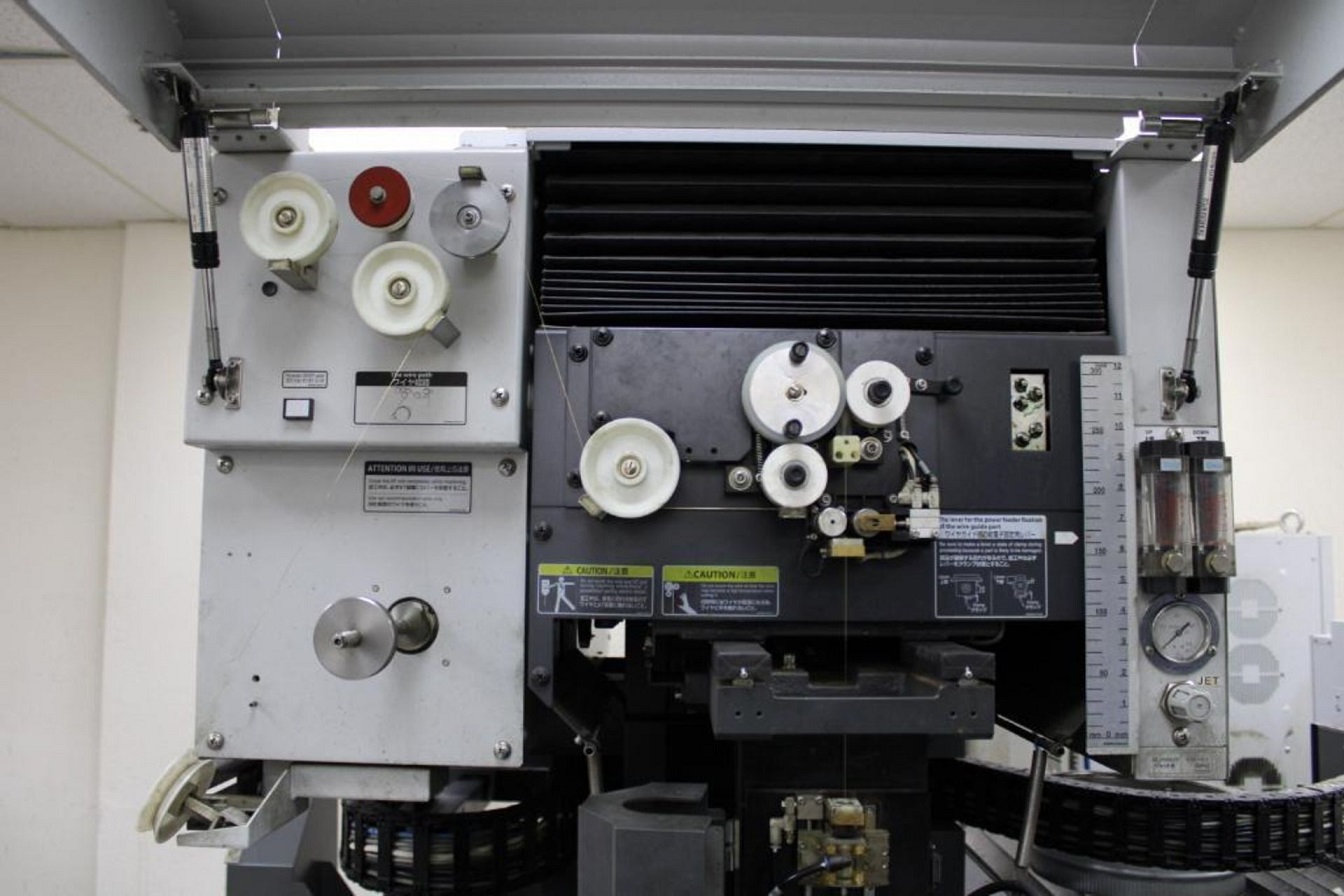

The Mitsubishi MV series machine features the M800 D-Cubes control with a 17-inch touchscreen for easier user interface. Mitsubishi is dedicated to constant innovation and strives to build only the highest quality machines. The MV series features new improvements in machine construction, auto-threading, internal machine communication, power supply technology and operating costs. The MV2400-S also includes a new, non-contact Cylindrical Drive System for the X&Y axis. The machine's improved features are sure to advance your EDM machining. Features: * 10 Second Threading System * New-Style Cut-wire Collection System * AT Device for Various Wire Types including Coated Wires * Wire Break-point Insertion and Submerged Threading * New-Style Wire Tension System * AT Self-Cleaning Process * VF Monitor - Real-Time Cutting Speed Graphic * New-Style Work Tank Seal Plate Mechanism

Click to view larger photo

Request A Quote On Our Stock Number: 0906 Mitsubishi MV2400S Wire EDM (2018)

Request a quote on stock# 0906

Specification	Description
Machining Travels ( X x Y x Z )	23.6" x 15.7" x 12.3"
U/V Travel	+/- 3"
Table Dimensions	33" x 25.2" (3-Sided)
Inside Table Dimensions	41.3" x 32.3"
Maximum Workpiece Size	23.6" x 15.7" x 12.3"
Maximum Submerged Workpiece Weight	3,300 lbs
Taper Capacity	+-15 deg @ 10"
Wire Diameter Range Possible	0.004"~0.012"
Wire Guides Included	0.010"
Minimum Resolution	.000002"
Table Rapid Feed	51.2"/Min
Min Hole Diameter for Autothread	.020"
Max Wire Spool Size	22 lbs
Filter Tank Capacity	260 Gal
Generator
Power Supply Unit	Regenerative Transistor Pulse
Max Output Current in A	50
Dimensions	24" x 26" x 70"
Weight	528 lbs
Electrical Requirements	200-230V/3Phz/60
Dielectric System Dimensions	41" x 91" x 62"
Machine Total Layout Dimensions	106" x 120" x 85"
Machine Tool Only Weight	7,716 lbs
Approximate Total Machine Weight	9,846 lbs

Equipped With:

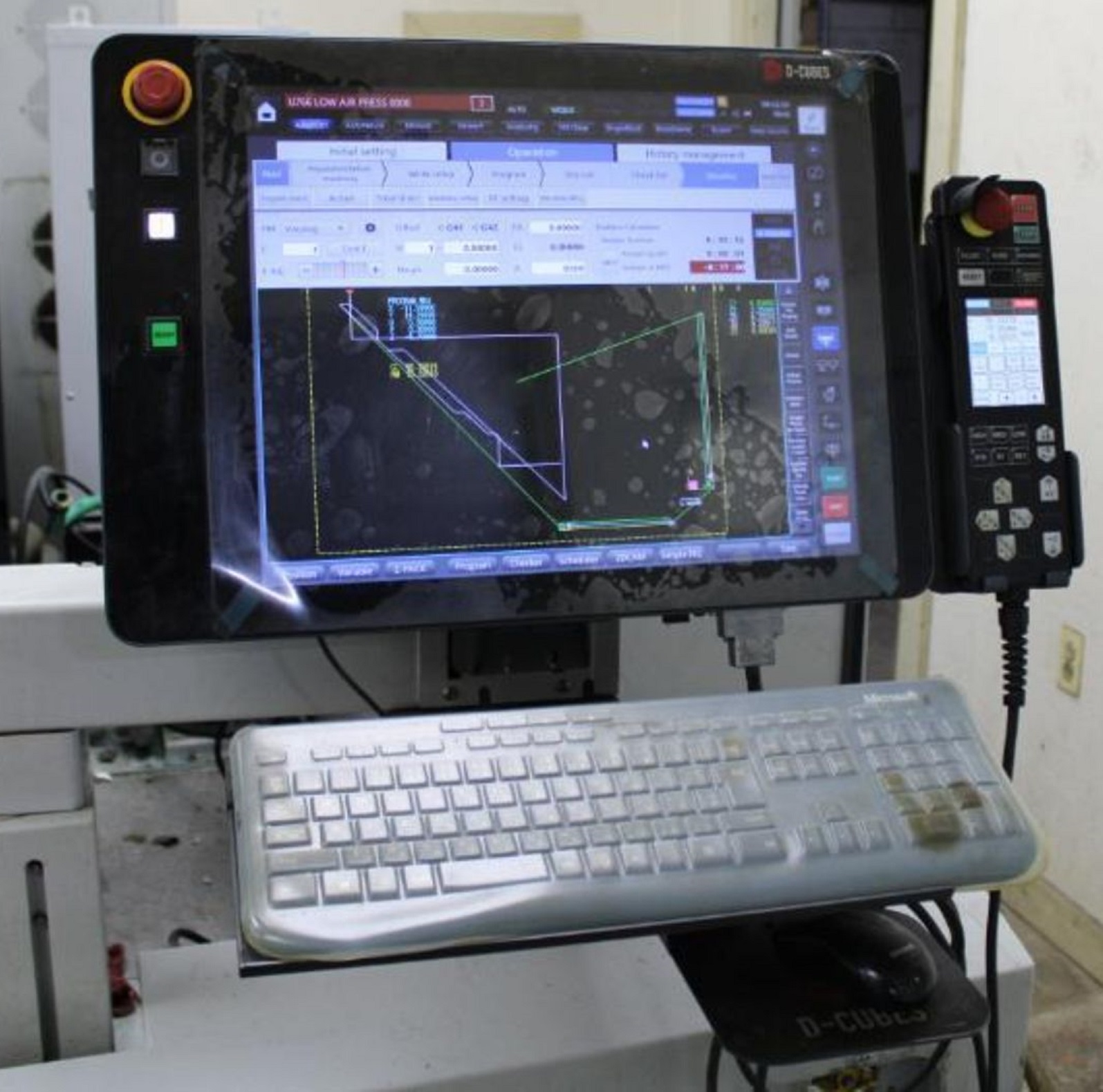

* Mitsubishi M800 D-Cubes Control * 17" Touch Screen * Non-Contact Cylindrical Drive Technology * V350-V AEII Power Supply * DMX-S (Digital Matrix Sensor) Shapes Each Spark Reducing Electrode Wear * Auto Wire Threading (AT2) * 40GB Hard Drive * 10 KG Wire Spool * Hardened 3-Sided Stainless Work Table * Wire Alignment Gauge * Auto-Oiler Lubrication System * Auto Power Recovery * Fast Fill Pump * Inverter Controlled 16-Step Programmable Flushing * Automatic Vertical Machine Tank Door * Angle Master Advance * Linear Glass Scale Feedback (X-Y Axes) * 2 Axis LSM Linear Shaft Motors (X,Y) * Ballscrew Driven w/Rotary Encoders (U,V&Z) * DNC Ethernet FTP * Program Input Methods: Keyboard, (2) USB Flash Memory, and Ethernet with FTP Standard * 2 USB Ports * Paper Cartridge Filter System * 5 Micron Filter Precision * Electric Chiller * All Available Manuals and Accessories ** Optional Consumables Starter Package $2,150.00 4 Spools of .010" Diameter Brass Wire - 13.2 lbs (1 case) 4 Filters - 5 Micron Paper Filter 1 Dual Canister DI Resin Cart w/Prefilter 4 Resin Socks - 1/2 cu ft Regenerated Resin (#ZBDR)
