Makino U3 Wire EDM (2014)
Stock Number: 0905
Makino U3
Age: 2014
Condition: As Is, Where Is

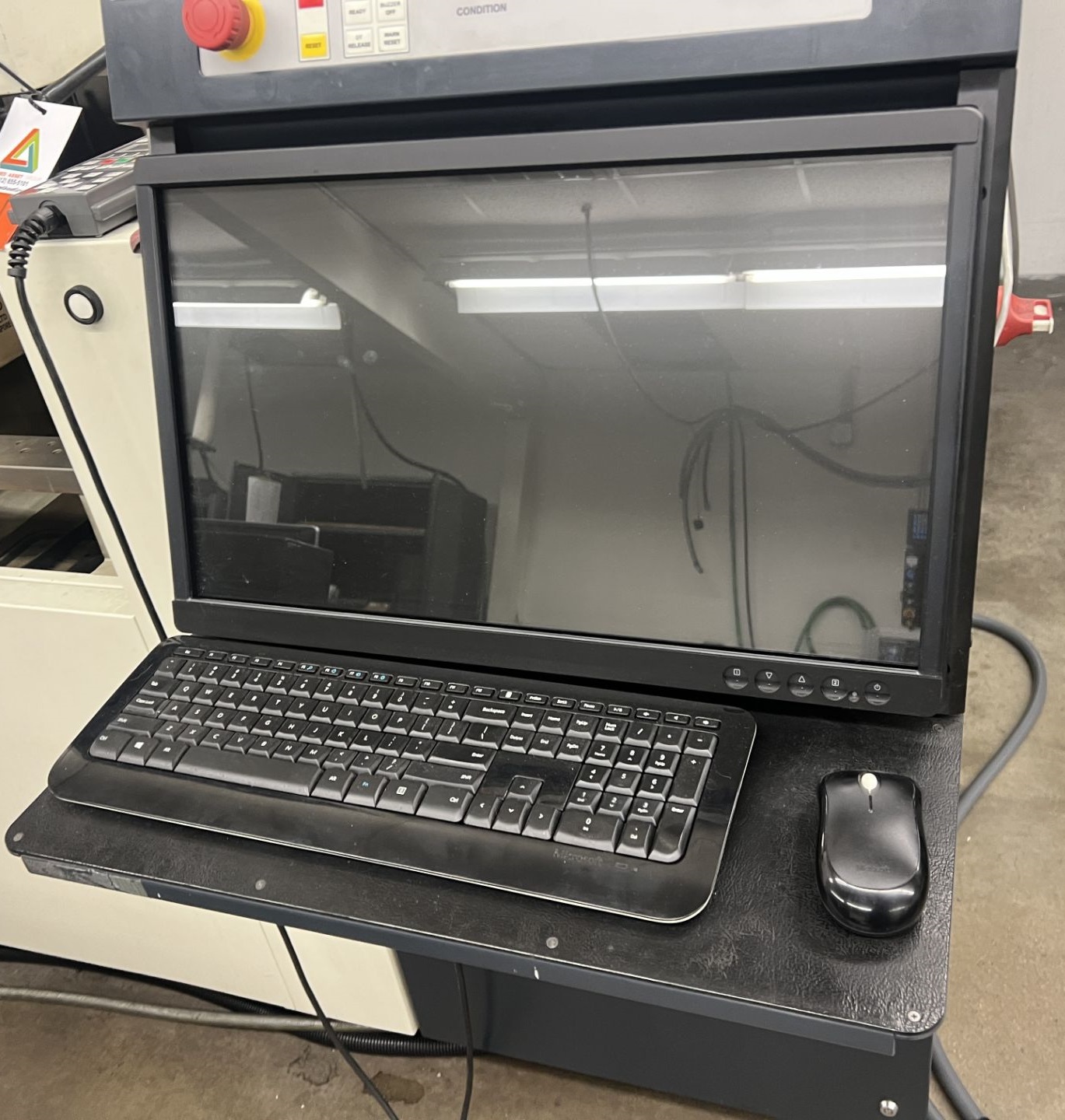

The Makino U3 Wire EDM machine features the Hyper i control, which provides the same efficient and user-friendly interface for Wire and RAM EDM machines. The large 24" class HD touch-screen display provides a commanding view for the operator, and utilizes intuitive and familiar touch Pinch/Swipe/Drag operations similar to smartphones and tablets. Straightforward machine operation is accomplished on the Hyper i control with a 3-Step process of Program/Setup/Run flow, and there are many helpful intelligent tools and functions for the operator that provide greater convenience and flexibility, such as the standard full-function advanced Handbox. Digital onboard electronic manuals, instructional training videos, and advanced E-Tech Doctor help functions provide the operator with practical resources at their fingertips to remain highly productive.
Click to view larger photo
Request a quote on stock# 0905
| Specification | Description |
|---|
| X,Y,Z Travels | 14.6" x 10.6" x 8.7" |
| UV Travels | ±2.0" |
| Table Size | 24.8" x 17.7" |
| Table Type | 3 Sided |
| Inside Tank Dimensions | 31.1" x 24.0 x 10.0"H |
| Maximum Workpiece Size | 30.3" x 23.2" x 8.7"H |
| Maximum Work Piece Weight | 1,323 lbs |
| Wire Spool Size | 22 lbs |
| Wire Sizes | .004" - .012" |
| Approx. Machine Dimensions | 91" x 77" x 83" |
| Approx. Machine Weight | 7,054 lbs |
Equipped With:
* Makino Hyper i Control
* 0.05 Micron Glass Scale Feedback (X Y-Axis)
* Submerged Machining Capability
* Automatic Wire Threader

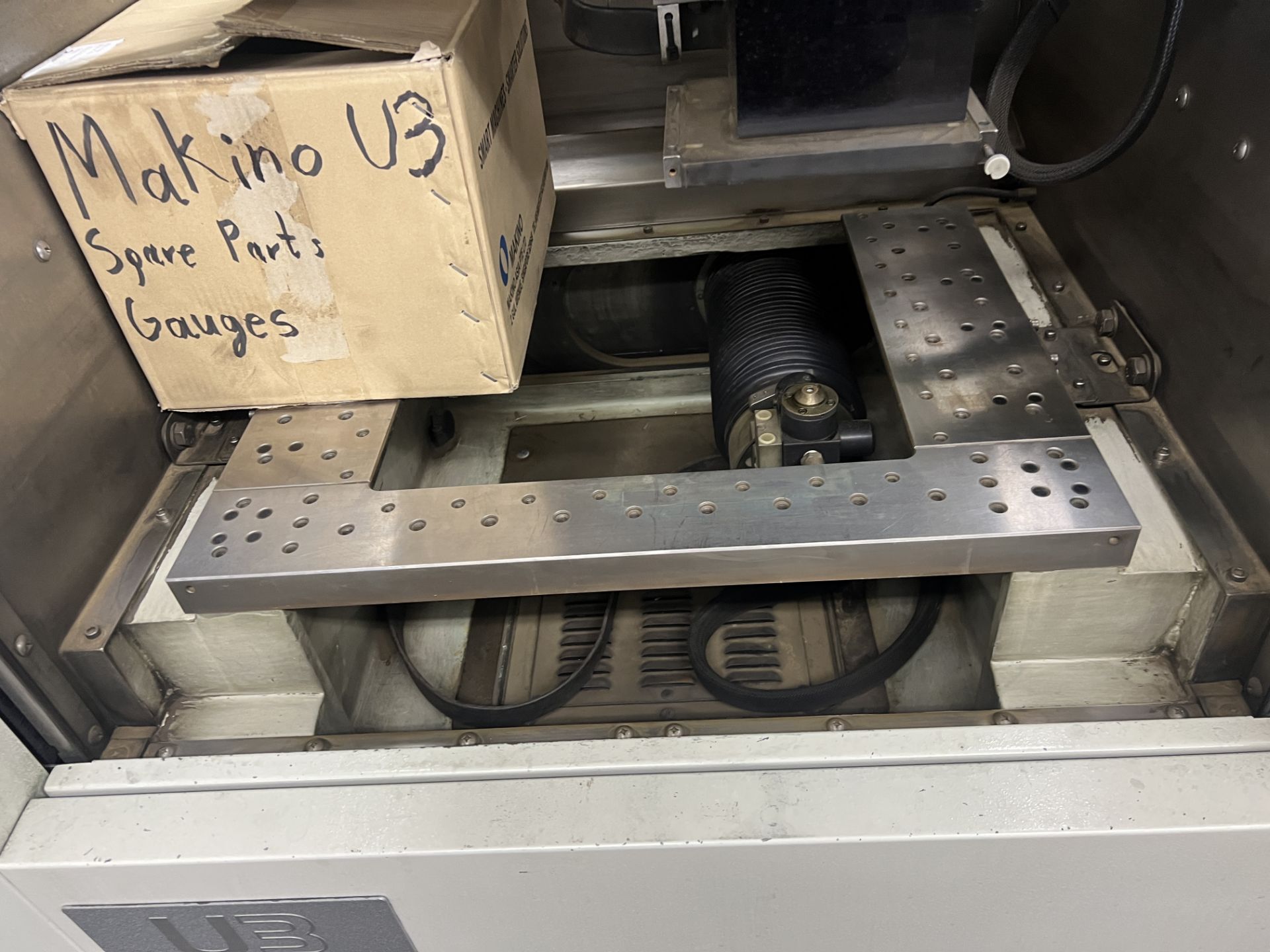

* Hardened U-Shape Table
* Automatic Tank Height Setting Function
* Large HD Touch Screen
* Ethernet Network Connection
* Antivirus Function
* USB Terminal
* Progammable Z-Axis
* Dielectric Fluid Cooling Unit
* All Available Disks and Manuals
