Mitsubishi MV2400S Wire EDM (2020)

Mitsubishi MV2400S Wire EDM (2020)

Stock Number: 0903

Mitsubishi MV2400S

Age: 2020

Condition: *Technician Verified

The Mitsubishi MV series machine features the M800 D-Cubes control with a 17-inch touchscreen for easier user interface. Mitsubishi is dedicated to constant innovation and strives to build only the highest quality machines. The MV series features new improvements in machine construction, auto-threading, internal machine communication, power supply technology and operating costs. The MV2400-S also includes a new, non-contact Cylindrical Drive System for the X&Y axis. The machine's improved features are sure to advance your EDM machining. Features: * 10 Second Threading System * New-Style Cut-wire Collection System * AT Device for Various Wire Types including Coated Wires * Wire Break-point Insertion and Submerged Threading * New-Style Wire Tension System * AT Self-Cleaning Process * VF Monitor - Real-Time Cutting Speed Graphic * New-Style Work Tank Seal Plate Mechanism

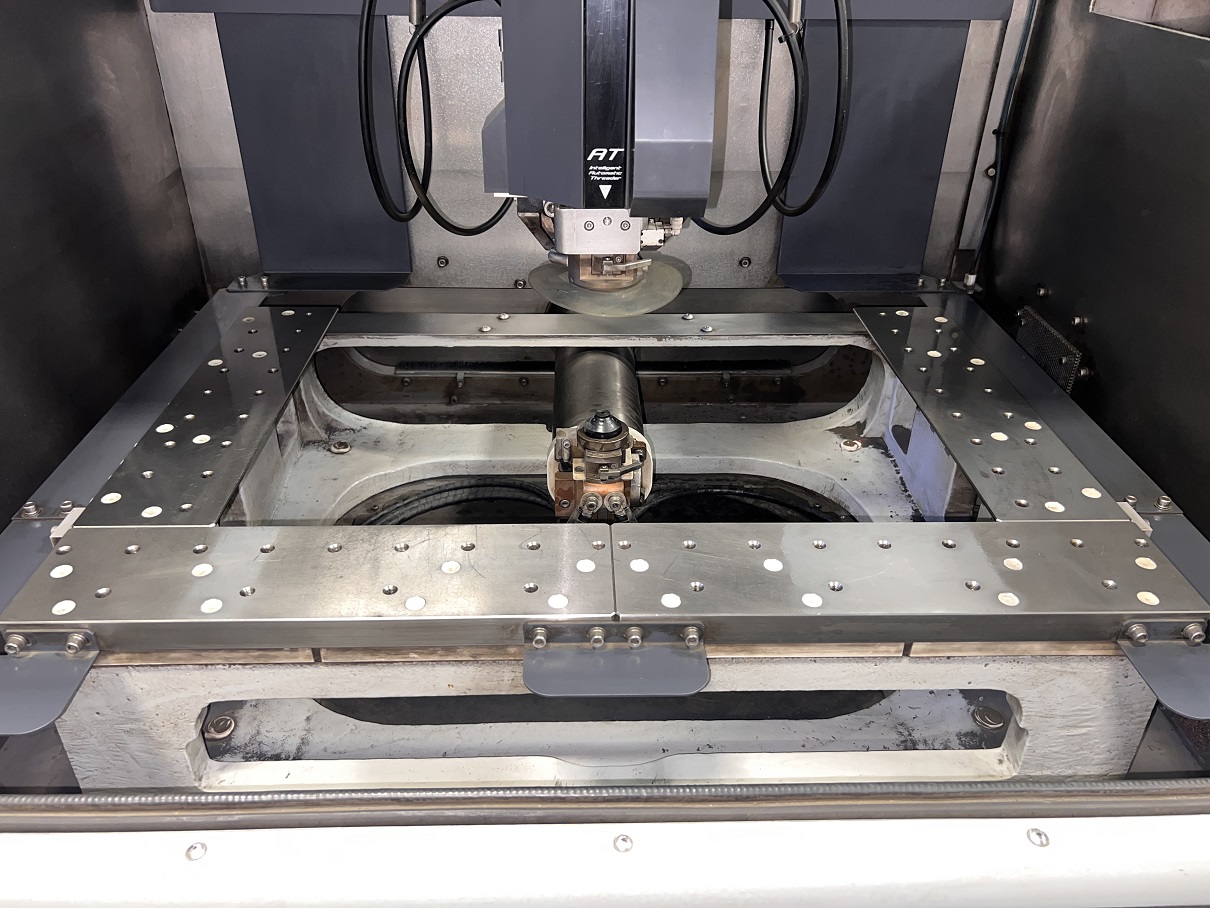

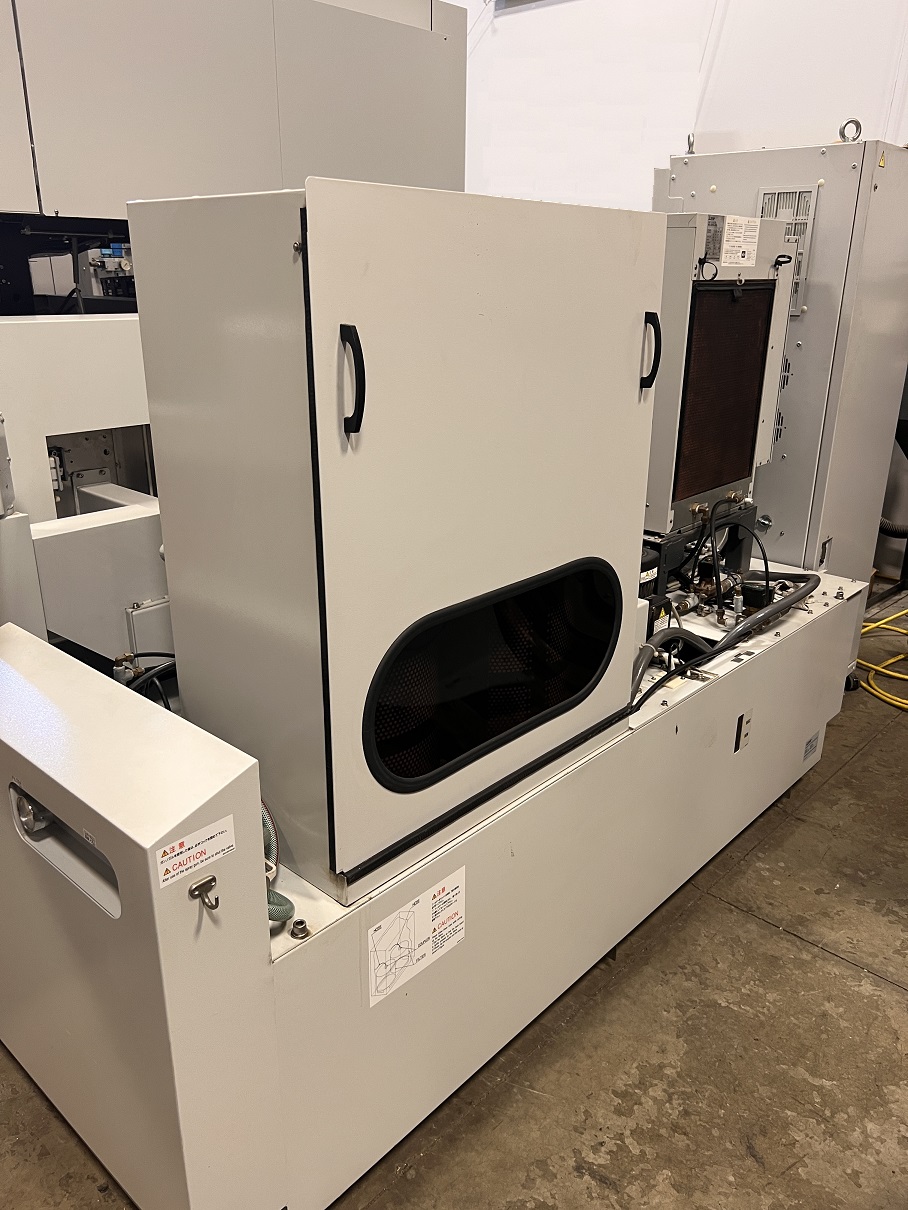

Click to view larger photo

Request A Quote On Our Stock Number: 0903 Mitsubishi MV2400S Wire EDM (2020)Request a quote on stock# 0903
SpecificationDescription
Machining Travels ( X x Y x Z )23.6" x 15.7" x 12.3"
U/V Travel+/- 3"
Table Dimensions33" x 25.2" (3-Sided)
Inside Table Dimensions41.3" x 32.3"
Maximum Workpiece Size23.6" x 15.7" x 12.3"
Maximum Submerged Workpiece Weight3,300 lbs
Taper Capacity+-15 deg @ 10"
Wire Diameter Range Possible0.004"~0.012"
Wire Guides Included0.010"
Minimum Resolution.000002"
Table Rapid Feed51.2"/Min
Min Hole Diameter for Autothread.020"
Max Wire Spool Size22 lbs
Filter Tank Capacity260 Gal
Generator
Power Supply UnitRegenerative Transistor Pulse
Max Output Current in A50
Dimensions24" x 26" x 70"
Weight528 lbs
Electrical Requirements200-230V/3Phz/60
Dielectric System Dimensions41" x 91" x 62"
Machine Total Layout Dimensions106" x 120" x 85"
Machine Tool Only Weight7,716 lbs
Approximate Total Machine Weight9,846 lbs

Equipped With:
* Mitsubishi M800 D-Cubes Control * 17" Touch Screen * Non-Contact Cylindrical Drive Technology * V350-V AEII Power Supply * DMX-S (Digital Matrix Sensor) Shapes Each Spark Reducing Electrode Wear * Auto Wire Threading (AT2) * 40GB Hard Drive * 10 KG Wire Spool * Hardened 3-Sided Stainless Work Table * Wire Alignment Gauge * Auto-Oiler Lubrication System * Auto Power Recovery * Fast Fill Pump * Inverter Controlled 16-Step Programmable Flushing * Automatic Vertical Machine Tank Door * Angle Master Advance * Linear Glass Scale Feedback (X-Y Axes) * 2 Axis LSM Linear Shaft Motors (X,Y) * Ballscrew Driven w/Rotary Encoders (U,V&Z) * DNC Ethernet FTP * Program Input Methods: Keyboard, (2) USB Flash Memory, and Ethernet with FTP Standard * 2 USB Ports * Paper Cartridge Filter System * 5 Micron Filter Precision * Electric Chiller * All Available Manuals and Accessories ** Optional Consumables Starter Package $2,150.00 4 Spools of .010" Diameter Brass Wire - 13.2 lbs (1 case) 4 Filters - 5 Micron Paper Filter 1 Dual Canister DI Resin Cart w/Prefilter 4 Resin Socks - 1/2 cu ft Regenerated Resin
