Mitsubishi MV1200S Wire EDM (2014)

Stock Number: 0902

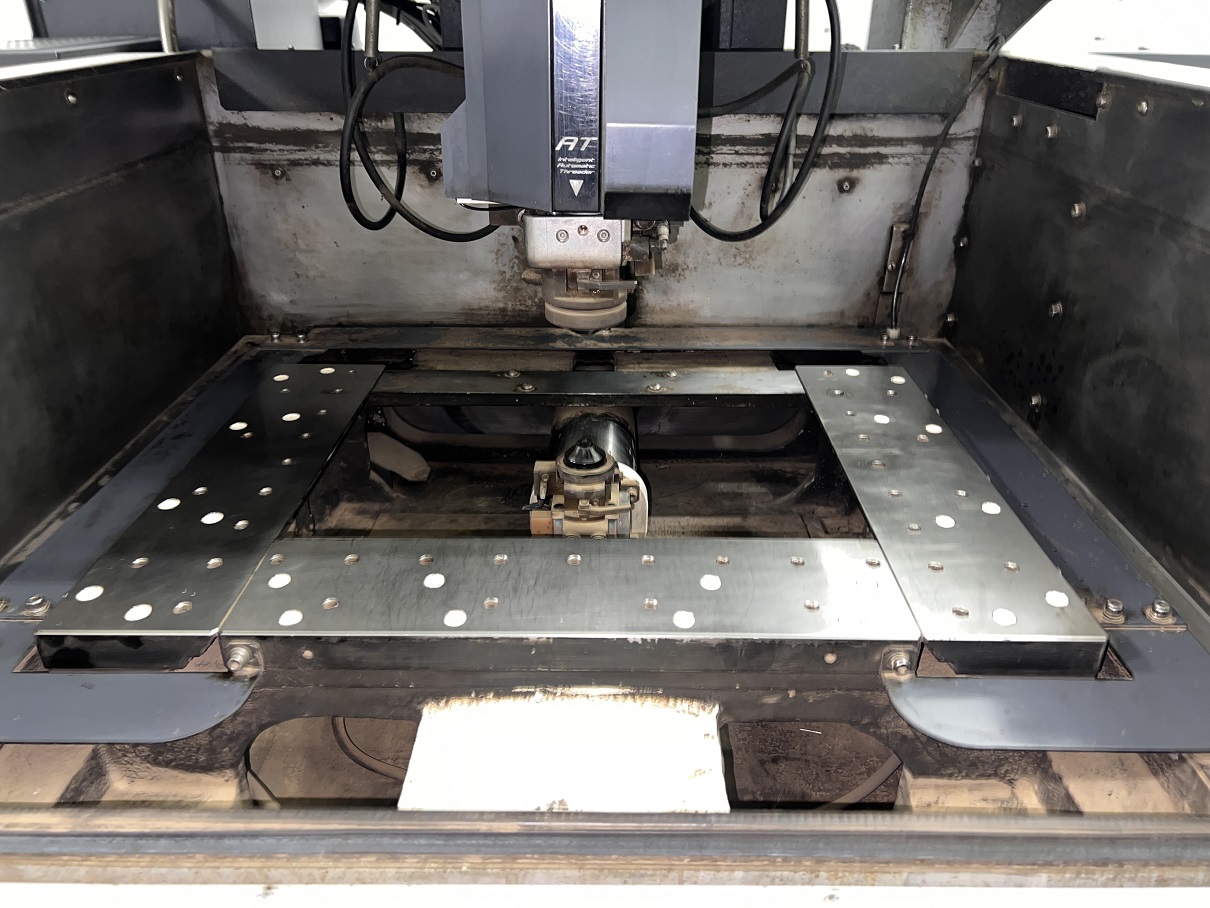

Mitsubishi MV1200S

Age: 2014

Condition: *Technician Verified

The Mitsubishi MV series machine features the M700 series control with a 15-inch touchscreen for easier user interface. Mitsubishi is dedicated to constant innovation and strives to build only the highest quality machines. The MV series features new improvements in machine construction, auto-threading, internal machine communication, power supply technology and operating costs. The MV1200-S also includes a new, non-contact Cylindrical Drive System. The machine's improved features are sure to advance your EDM machining. Features: * 10 Second Threading System * New-Style Cut-wire Collection System * AT Device for Various Wire Types including Coated Wires * Wire Break-point Insertion and Submerged Threading * New-Style Wire Tension System * AT Self-Cleaning Process * VF Monitor - Real-Time Cutting Speed Graphic * New-Style Work Tank Seal Plate Mechanism A Youtube video of this machine operating can be seen at: https://youtu.be/73WpQJoNNEE

View a video of Mitsubishi MV1200S Wire EDM (2014)

Click to view larger photo

Request A Quote On Our Stock Number: 0902 Mitsubishi MV1200S Wire EDM (2014)

Request a quote on stock# 0902

Specification	Description
Machining Stroke ( X x Y x Z )	15.7" x 11.8" x 8.7"
Table Size	25.2" x 21.3"
Maximum Workpiece Size	31.9" x 27.6" x 8.5"
Maximum Workpiece Weight	1,102 lbs
Machining Stroke ( U x V )	ą2.4" x ą2.4"
Taper Capacity	+-30 deg max / +-15deg @ 8"
Wire Diameter Range Possible	0.004"-0.012"
Wire Guides Included	0.010"
Minimum Resolution	.000002"
Min Hole Diameter for Autothread	.020"
Max Wire Spool Size	22 lbs
Filter Tank Capacity	145 Gal
Electrical Requirements	200-220V/3Phz/60Hz
Air Pressure Requirements	71-100 PSI 2.7 cu ft/min
Approximate Overall Dimensions	80" x 107" x 80"
Approximate Machine Weight	5,952 lbs

Equipped With:
* Mitsubishi M700 CNC Control * Auto Wire Threading (AT2) * Wire Chopper * 15" LCD Touch Screen * 40GB Hard Drive * Anti-Electroloysis Power Supply * 10 KG Wire Spool * Hardened 3-Sided Stainless Work Table * Wire Alignment Gauge * Auto-Oiler Lubrication System * Auto Power Recovery * Fast Fill Pump * Inverter Controlled 16-Step Programmable Flushing * Automatic Vertical Machine Tank Door * Angle Master Advance * Linear Scales * Linear Glass Scale Feedback (X-Y Axes) * 2 Axis LSM Linear Shaft Motors (X,Y) * Ballscrew Driven w/Rotary Encoders (U,V&Z) * DNC Ethernet FTP * Program Input Methods: Keyboard, (2) USB Flash Memory, and Ethernet with FTP Standard * 2 USB Ports * Paper Cartridge Filter System * 5 Micron Filter Precision * Electric Chiller * All Available Manuals and Accessories ** Optional Consumables Starter Package $2,150.00 4 Spools of .010" Diameter Brass Wire - 13.2 lbs (1 case) 4 Filters - 5 Micron Paper Filter 1 Dual Canister DI Resin Cart w/Prefilter 4 Resin Socks - 1/2 cu ft Regenerated Resin (#ZBDR)
