Charmilles Robofil 240SLP Wire EDM (2007)
Stock Number: 0901

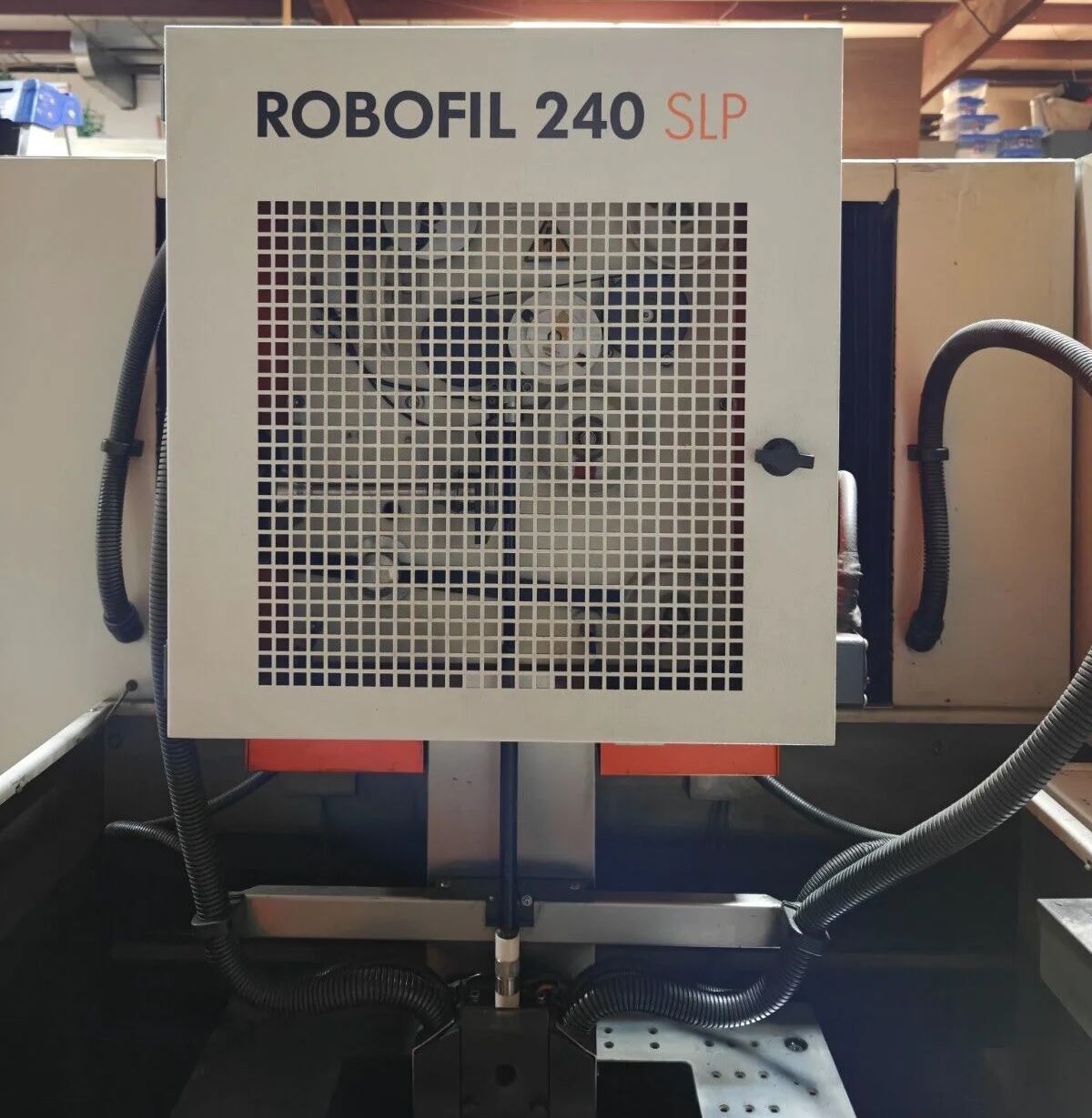

Charmilles Robofil 240SLP
Age: 2007
Condition: As Is, Where Is
Machine Features: The FI240SLP wire EDM center with a Micro-processor numerical control, for the automatic machining of workpieces from roughing to finishing, automatic execution of elementary machining operations, machining cycles, part programs and any other operation necessary between programs.
Space saving compact design
Heavy workpiece design without the loss of accuracy
Low consumable cost filtration system
30° taper capability at max Z height
0.00002" resolution glass scales on all axes
Industrial speed of 28sq. inches/hour
Collision protection on all axes
Rhenocast base for thermo stability and vibration dampening
Click to view larger photo
Request a quote on stock# 0901
| Specification | Description |
|---|
| X, Y, Z Travels: | 13.77" x 8.66" x 8.66" |
| U, V Travel: | 13.77" x 8.66" |
| Maximum Taper Angle: | +/- 30 Deg / 8.66" |
| Table Dimensions: | 26.77" x 17.72" |
| Maximum Workpiece Dimensions: | 39.37" x 21.65" x 8.66" |
| Wire Diameter Capability: | .004" to .012" |
| Wire Guides Included: | .010" |
| Reservoir Capacity: | 201 Gallons |
| Power Supply: | 400V/3Phz, 10 KVA |
| Machine Dimensions: | 79.53" x 80.71" x 78.74" |
| Machine Weight: | 5,401 lbs |
Equipped With:

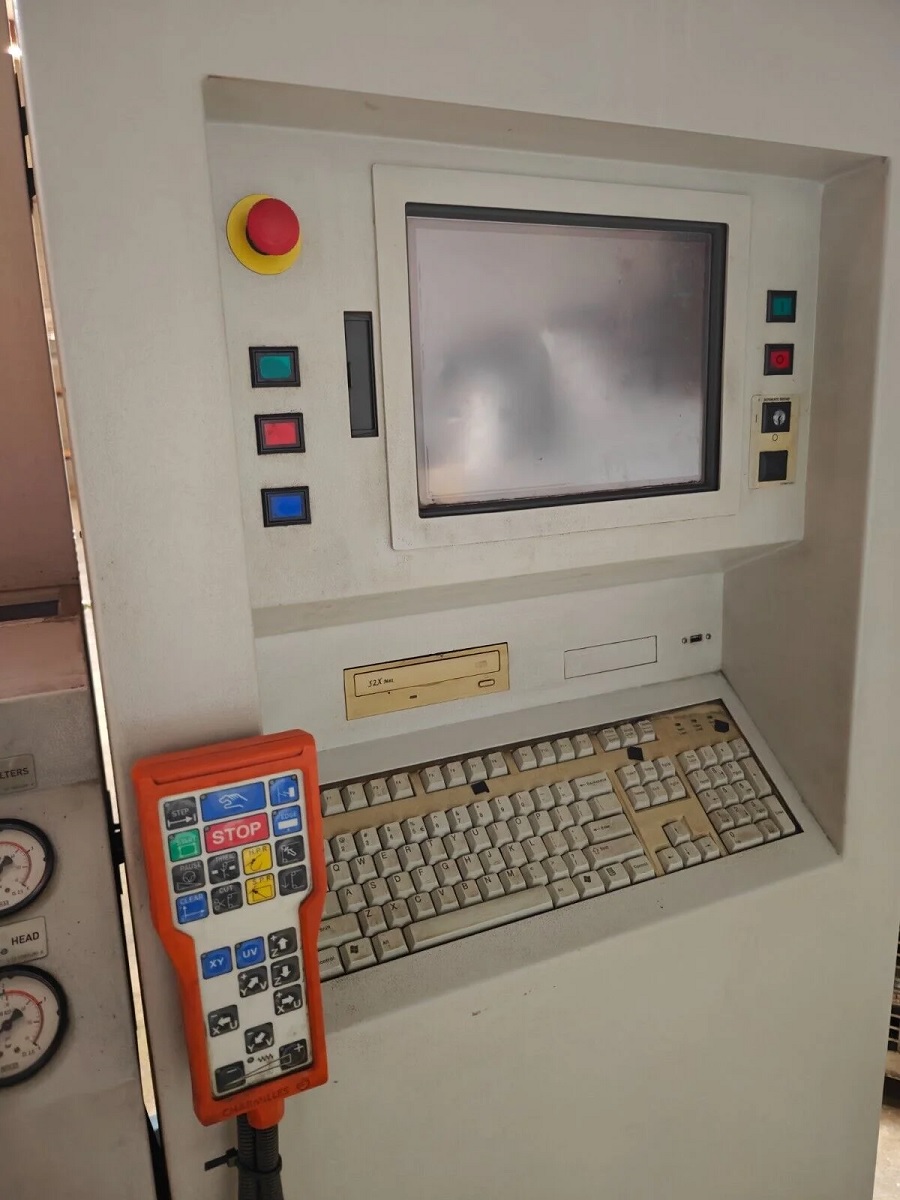

* Charmilles CT Millenium Controller
* Auto Wire Threader
* Submerged Cutting Capability
* Wire Chopper
* Advantage Electric Chiller
* All Available Manuals and Accessories
